joi, 16 ianuarie 2014

Afișarea codurilor telecomenzii RC5

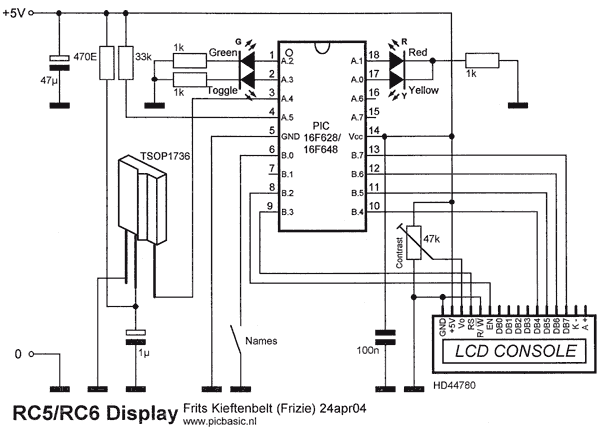

     Precum scriam în altă postare, am reușit să decodific codurile telecomenzii RC, inspirându-mă de aici. Schema folosită este cea de acolo, la care am făcut modificări, deoarece am folosit 16F690.


 '****************************************************************
 '* Name  : Show IR code.BAS
 '* Author :
 '* Notice :
 '*     :
 '* Date  : 07.12.2013
 '* Version : 1.0
 '* Notes  : 16F690
 '* inspirat dupa http://www.picbasic.nl/frameload_uk.htm?http://www.picbasic.nl/rc5_display_uk.htm
 '****************************************************************
   ANSEL=0   'toate porturile sunt digitale
   ANSELH=0
 ;******** legaturi display 2x16 caractere *******
      DEFINE LCD_DREG  PORTC    ;PortC folosit pentru date
      DEFINE LCD_DBIT  0        ;pinul RC0 este primul pin de date conectat
      DEFINE LCD_RSREG  PORTC   ;portC folosit pt. pinul RS
      DEFINE LCD_RSBIT  5       ;RC5 - Register select pin
      DEFINE LCD_EREG  PORTC    ;foloseste PortB pentru pinul E
      DEFINE LCD_EBIT  4        ;RC4 - Enable pin
      DEFINE LCD_BITS  4        ;bus pe 4 biti
      DEFINE LCD_LINES  2       ;LCD cu doua randuri de caractere
      ;Pause 400
      DEFINE OSC 4
 ;Attention: The TSOP1736 (= 36kHz IR-receiver) must connected via a 470 Ohm resistor to
 ;      +5V and over the + and - pin a tantalium C of minimal 0,1uF !
 ;      Connection TSOP1736: || |
 ;                           -+ s
   TRISA =000100
   TriSC.6=0:TrisC.7=0
 ;Normal aliases (constants)
   Glitch    con 52     ;Max 255: Reduction glitches
   LED_Time  con 500    ;mSec: Error LED's burning time
   Ok        con 50     ;Max 255: Controltime of the RC5 code is received ok
 ;Logic aliases (constants)
   AAN     con 0    ;Reversed ON
   FALSE   con 0
   OFFF    con 0
   ONN     con 1
   TRUE    con 1
   UIT     con 1    ;Reversed OFF
 ;Port aliases
   LED_Yellow  var PORTA.1 ;glitch-uri
   LED_Red     var PORTA.0 ;semnal slab sau nu e RC5/RC6
   LED_Green   var PORTC.7 ;semnal infrarosu receptionat
   LED_Toggle  var PORTC.6 ;bit-ul toggle
   IR_Receiver var PORTA.2 ;TSOP1736
 ;BYTE
  Command      var BYTE  ;RC5/RC6 command byte
  CommandOld   var BYTE
  Systeem      var BYTE  ;RC5/RC6 system byte
  SysteemOld   var BYTE
  BD1          var BYTE  ;Byte Dummy
 ;BIT
  CodeRC5X    var BIT  ;TRUE when it's RC5X code else...
  CodeRC6     var BIT  ;...TRUE if it's RC6 code (else RC5)
  CodeRC6Old  var BIT  ;By switching between RC6 and RC5/RC5X must the LCD been updated
  ToggBit     var BIT  ;RC5/RC6 toggle bit
  Value       var BIT  ;Argument for subroutine "BitOphalen"
  ID1         var BIT  ;bIt Dummy
   CLEAR
   pauseus 500         ;LC-Display stabilize
   Lcdout $FE,1        ;clear display
   Lcdout $FE,2        ;return home
   Lcdout "Decoder UK V-1"  ;Program name and version
   Lcdout $FE,$C0,"www.picbasic.nl"
 GOTO Start          ;Jump over the subroutines
 ;SUBROUTINES
 BitOphalen:
  BD1 = 0
  Value = IR_Receiver                       ;Make value 0 or 1 depending from received IR-code
  WHILE IR_Receiver = Value AND BD1 < Ok ;Level must change within time 'Ok'
   BD1=BD1+1
  WEND
  IF Ok = BD1 THEN ErrorReceiving  ;No level-change whitin the 'Ok' time
  IF CodeRC6 = TRUE THEN
   Value = 1 - Value     ;RC6 is inverted to RC5/RC5X
   pauseus 625           ;525 - 725 ;(889us / 2 = 444) + half from this time to come in the middle of the next bit; 444+222 = 666, - a few usec's for the program itself = about 625
  ELSE
   pauseus 850       ;950 - 1600  1100
  ENDIF
  RETURN
 ;MAINPROGRAM
 Start:
  LED_Green =  OFFF
  LED_Yellow = OFFF
  LED_Red  =   OFFF
  BD1 = 0
  WHILE IR_Receiver = UIT: WEND        ;Wait for IR receive
  WHILE IR_Receiver = AAN AND BD1 &lt ; Glitch
   BD1=BD1+1
  WEND

  CommandOld = Command    ;Save old values for repair in case of a error
  SysteemOld = Systeem
  LED_Green = ONN         ;Received an IR-signal
 ;Find out which protocol----------------
  BD1 = 0
  Command = 0         ;Eerst 0 maken omdat RC5/RC5X bits 6 & 7 niet overschrijft, als RC6 deze eerder hoog heeft gemaakt, blijven deze hoog (=fout)
  Systeem = 0         ;Eerst 0 maken omdat RC5/RC5X bits 5,6,7 niet overschrijft, als RC6 deze eerder hoog heeft gemaakt, blijven deze hoog (=fout)
  WHILE BD1 < 255 AND IR_Receiver = AAN
   BD1=BD1+1
  WEND
  CodeRC5X = FALSE
  CodeRC6 = FALSE
   if BD1>25 and BD1<90 then     ;RC5X
      CodeRC5X = TRUE
      Command.6 = 1
      pauseus 800                      ; 900 - 1700 (RC5X)   1280
   endif
   if BD1>90 then                   ;RC6
     CodeRC6  = TRUE
   endif
   if BD1<25 or BD1>90 then
     pauseus 1700                      ;1800 - 2600 (RC5)   2180
   endif
 ; --------------------------------------
  IF CodeRC6 = TRUE THEN
   WHILE IR_Receiver = UIT :WEND ;00
   WHILE IR_Receiver = AAN :WEND ;1
   WHILE IR_Receiver = UIT :WEND ;0
   WHILE IR_Receiver = AAN :WEND ;1
   WHILE IR_Receiver = UIT :WEND ;0
   pauseus 2000      ;Wait till the last '1' from the header comes (1778us), by this it come in the middle of the first toggle bit
   LED_Toggle  = IR_Receiver
   ToggBit    = IR_Receiver
   WHILE ToggBit = IR_Receiver :WEND               ;Wait till the inverted part from the togglebit comes
   pauseus 1100              ;1000 - 1200         ; By this it comes in the middle of the first system bit
   GOSUB BitOphalen
   Systeem.7 = Value
   GOSUB BitOphalen
   Systeem.6 = Value
   GOSUB BitOphalen
   Systeem.5 = Value
  ELSE
   GOSUB BitOphalen
   LED_Toggle = Value
  ENDIF
  GOSUB BitOphalen
  Systeem.4 = Value
  GOSUB BitOphalen
  Systeem.3 = Value
  GOSUB BitOphalen
  Systeem.2 = Value
  GOSUB BitOphalen
  Systeem.1 = Value
  GOSUB BitOphalen
  Systeem.0 = Value
  IF CodeRC6 = TRUE THEN   ;RC5/RC5X has no 6th and 7th bits
   GOSUB BitOphalen
   Command.7 = Value
   GOSUB BitOphalen
   Command.6 = Value
  ENDIF
  GOSUB BitOphalen
  Command.5 = Value
  GOSUB BitOphalen
  Command.4 = Value
  GOSUB BitOphalen
  Command.3 = Value
  GOSUB BitOphalen
  Command.2 = Value
  GOSUB BitOphalen
  Command.1 = Value
  GOSUB BitOphalen
  Command.0 = Value
  IF Systeem <> SysteemOld OR Command <> CommandOld OR CodeRC6 <> CodeRC6Old THEN ;Without this line the LCD blinks when receiving IR signal (because of CLS)
   Lcdout $FE,1        ;clear display
   IF CodeRC5X = TRUE THEN
    Lcdout "RC5X"
   ELSEIF CodeRC6 = TRUE THEN
    Lcdout "RC6"
   ELSE
    Lcdout "RC5"
   ENDIF
   lcdout  " Protocol"
   pause 1000         ;Time for indication RC5, RC5X or RC6 protocol
   Lcdout $FE,1        ;clear display
   Lcdout "Sys:", DEC Systeem," ",BIN Systeem
   Lcdout $FE,$C0,"Com:", DEC Command," ",BIN Command
  ENDIF
 ;Don't put this line at the beginning near Start, else is would also reset when a glitch is received
  CodeRC6Old = CodeRC6    ;By switching between RC6 and RC5/RC5X must the LCD been updated
 GOTO Start
 ErrorGlitch:
  LED_Yellow = ONN       ;Receive error (No RC5 code or glitch)
  pause LED_Time
 GOTO Start
 ErrorReceiving:
  LED_Green = OFFF
  LED_Red  = ONN       ;No RC5 code or no optimal receiving
  pause LED_Time
  Command = CommandOld    ;Repair Command and Systeem
  Systeem = SysteemOld
 GOTO Start

miercuri, 15 ianuarie 2014

Afișarea codurilor telecomenzii NEC

      Despre protocolul NEC se pot găsi o mulțime de informații pe internet, iar pentru decodarea codului am găsit pe forumul picbasic ceva ce se poate folosi la realizarea unui montaj care afișează pe un LCD 2x16 adresa și comanda butonului apăsat. Eu am folosit 16F886, dar se poate adapta ușor la orice PIC.


 '****************************************************************
 '* Name  : Decode NEC3.BAS
 '* Author : Nica Florin
 '* Notice : Decodare semnale telecomanda de modulator FM
 '*     :
 '* Date  : 19.12.2013
 '* Version : 1.0
 '* Notes  : 16F886
 '*     :
 '****************************************************************

 @ __config _CONFIG1,_WDT_OFF & _MCLRE_OFF & _LVP_OFF & _CP_OFF
 @ __config _CONFIG2, _WRT_OFF
      ;oscilator intern 4 MHz

   ANSEL=0             ;porturile A si B sunt digitale
   ANSELH=0
   ADCON0.0=0
   SSPCON.5=0            ;dezactiveaza portC serial
   RCSTA.7=0
 ;******** legaturi display 2x16 caractere *******
  DEFINE LCD_DREG  PORTC       ;PortC folosit pentru date
      DEFINE LCD_DBIT  4     ;pinul RC4 este primul pin de date conectat
      DEFINE LCD_RSREG  PORTC   ;portC folosit pt. pinul RS
      DEFINE LCD_RSBIT  2         ;RC2 - Register select pin
      DEFINE LCD_EREG  PORTC   ;foloseste PortC pentru pinul E
      DEFINE LCD_EBIT  3         ;RC3 - Enable pin
      DEFINE LCD_BITS  4         ;bus pe 4 biti
      DEFINE LCD_LINES  2         ;LCD cu doua randuri de caractere
      Pause 500
 ;******* variabile si constante ***********
   Leader VAR WORD      ' will be up to 900 for a 9mS leader pulse
   BtnVal VAR BYTE[32]    ' holds 32 pulse results
   DByte1 VAR BYTE      ' address byte
   DByte2 VAR BYTE      ' inverse of address byte
   DByte3 VAR BYTE      ' command byte
   DByte4 VAR BYTE      ' inverse of command byte
   X   VAR BYTE      ' loop count


   buzzer    var PortC.1    ; pin 12 - conexiune buzzer
   IR_Receiver var PORTB.0    ; pin 21 - conexiune TSOP1736


 ;******* intrari/iesiri **********
   TrisB.0=1                           ;RB0 input
   TrisC.1=0               ;RC1 output

  Main:
    PULSIN IR_Receiver,0,Leader    ' leader pulse is ~9mS low-going
    IF Leader < 850 THEN Main

    FOR X = 0 TO 31          ' grab 32 incoming pulses
      PULSIN IR_Receiver,1,BtnVal(X) ' now measuring high-going pulse widths
    NEXT X

    ' now we'll decode 4 bytes from 32 pulses
    FOR X = 0 TO 7           ' sort 1st 8 pulses
      IF BtnVal[X] > 150 THEN    ' > 150 x 10uS = > 1.5mS pulse period
        DByte1.0[X]=1
      ELSE
        DByte1.0[X]=0
      ENDIF
    NEXT X

    FOR X = 8 TO 15          ' sort 2nd 8 pulses, etc....
      IF BtnVal[X] > 150 THEN
        DByte2.0[X-8]=1
      ELSE
        DByte2.0[X-8]=0
      ENDIF
    NEXT X

    FOR X = 16 TO 23
      IF BtnVal[X] > 150 THEN
        DByte3.0[X-16]=1
      ELSE
        DByte3.0[X-16]=0
      ENDIF
    NEXT X

    FOR X = 24 TO 31
      IF BtnVal[X] > 150 THEN
        DByte4.0[X-24]=1
      ELSE
        DByte4.0[X-24]=0
      ENDIF
    NEXT X
      Sound buzzer,[85,10]

    Lcdout "Adress  ", dec DByte1
    Lcdout $FE,$C0
    Lcdout "Command ", dec DByte3
    pause 3000
    Lcdout $FE,1        ;clear display
    Lcdout $FE,2        ;return home

    GOTO Main



vineri, 10 ianuarie 2014

Reglare iluminare LED-uri din telecomandă

   Astăzi am pus în sfârșit la treabă modulul PWM inclus în 16F886, am adăugat senzorul IR și a ieșit ... un  dimmer. Lanterna este alimentată prin BD 901. Trebuie să mai studiez modul cum se poate adapta un triac pentru reglarea intensității luminoase a unui bec, ceva în felul acesta.

joi, 9 ianuarie 2014

Termometru cu 18B20

   Simplu și eficient, termometru cu senzorul de temperatură digital 18B20. Firele de conexiune, din câte se pare, pot fi prelungite mai mulți metri, și deci se poate monta și în afara locuinței pentru măsurarea temperaturii exterioare.

luni, 6 ianuarie 2014

Cod de securitate I

    Inspirat de aici m-am apucat să construiesc și eu ceva asemănător și am făcut mai multe variante. Am folosit 16F690, o tastatură, un LCD 2x16, câteva rezistențe. A ieșit ce se vede mai jos...
     Pentru acționare se formează cod#. Codul este format din 5 cifre, se poate schimba în orice moment de la tastatură (codvechi*codnou#). Față de cel de pe jap.hu, are avantajul că nu necesită încă un circuit integrat pentru comanda LCD-ului.
     Am realizat și o variantă cu telecomandă RC5.

  Pentru decodarea codului RC5 m-am inspirat de aici.

Motor pas cu pas unipolar controlat din telecomandă

    Când am realizat prima dată circuitul, nu a funcționat chiar cum trebuia din pricina sursei de alimentare. După aceea am alimentat montajul cu PIC din calculator, prin intermediul programatorului, iar circuitul de comandă al motorului dintr-o sursă veche de PC. Schema este inspirată din cea de mai jos, la care am făcut niște modificări.
Am folosit 16F886, am eliminat buffer-ul 4050 și am pus rezistențe de 3k în loc. De asemenea, am eliminat push-butoanele și am folosit un senzor infraroșu TSOP 1736. Ca tranzistoare am folosit BD 901. Pe forumul PicBasic am găsit pe undeva o rutină de decodare a protocolului NEC și am integrat-o în program. Telecomanda este de modulator FM .

duminică, 5 ianuarie 2014

Ceas cu 16F628A

   Ceasul lui Bogdi. Toți cei care l-au făcut îl laudă. Și eu de asemenea. După aproape două luni de funcționare neîntreruptă, are 5 secunde abatere. În acest timp au fost perioade de câteva ore când a funcționat pe baterii (i-am pus 3 baterii din acelea cum sunt la brichetele cu LED). Ca alimentare, am desfăcut un încărcător mai vechi de telefon Sony Ericsson și am luat plăcuța de acolo. A ieșit un ceas foarte compact și care consumă foarte puțin, în jur de 50 mA.
